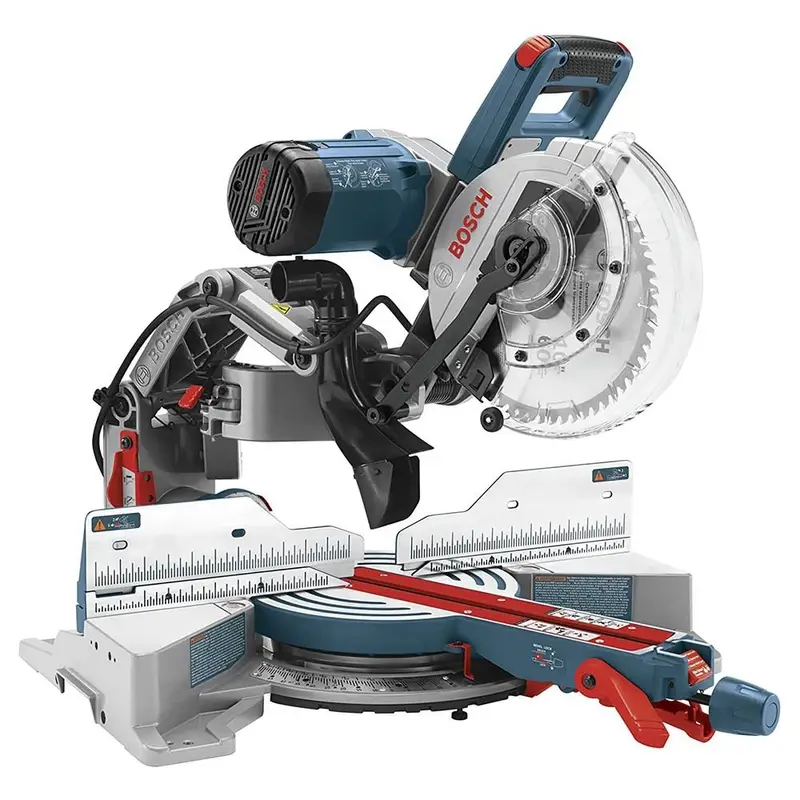

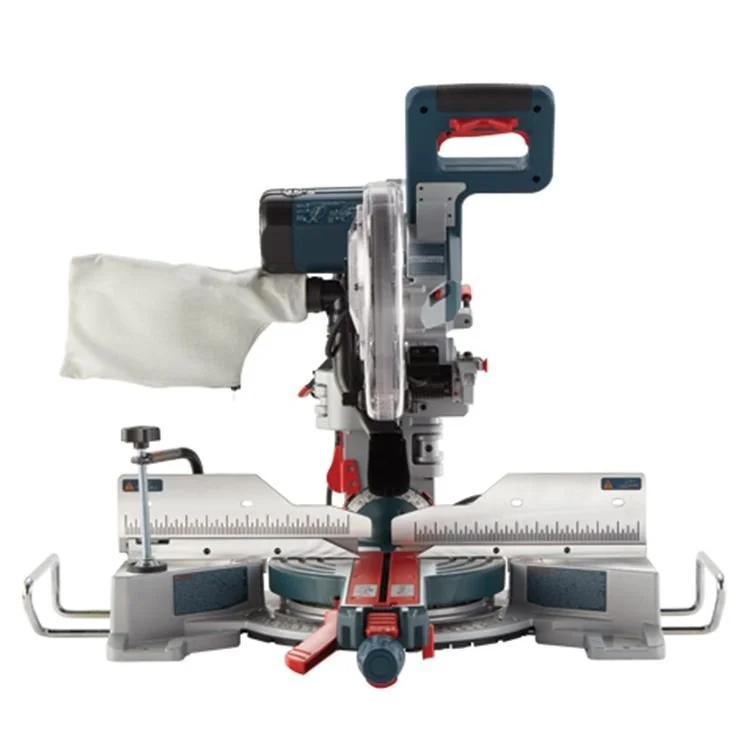

Bosch GCM12SD Miter Saw 12 Inch Dual Bevel Axial Glide Saw

Bosch GCM12SD Miter Saw is a 12-inch dual-bevel saw with an Axial-Glide system. It supports angle cuts to the left and right. In addition, the saw has front controls, square-lock fences, and base extensions for material support.
n
n12 Inch Blade
n
nThe saw uses a 12-inch blade. Therefore, it can handle a range of suitable wood cutting jobs.
n
nIn addition, the saw has a glide design for sliding cuts. Always secure the material before starting a cut.
n
nAxial Glide System
n
nThe Axial-Glide system controls the sliding movement of the saw. It also reduces the space needed behind the tool.
n
nTherefore, the saw can fit in work areas where rear space is limited. Follow the product guide when setting up the saw.
n
nDual Bevel Design
n
nThe Bosch GCM12SD supports bevel cuts to both sides. The listed range is 47 degrees left and 47 degrees right.
n
nIn addition, bevel stops are provided at 0, 33.9, and 45 degrees. These stops are available on both sides.
n
nMiter Range
n
nThe saw has a listed miter range of 52 degrees left and 60 degrees right.
n
nIn addition, it has stops at common angles. These include 0, 15, 22.5, 31.6, and 45 degrees.
n
nA 60-degree right stop is also listed. Moreover, a miter stop override allows more angle control.
n
nSquare Lock Fences
n
nThe saw has pre-set square-lock fences. These fences help position material before a cut.
n
nIn addition, the fence system works with the angle controls. Check the material position before turning on the saw.
n
nBase Extensions
n
nBuilt-in base extensions provide more support for larger pieces.
n
nThe supplied data lists up to 40 inches of support from left to right. Therefore, users can extend the work area when needed.
n
nDust Collection
n
nThe saw includes a dust chute. A vacuum adapter is also included.
n
nTherefore, users can connect a suitable dust collection setup. Check the connection before starting work.
n
nFront Controls
n
nThe miter and bevel controls are placed at the front. As a result, users can reach the main settings without moving behind the saw.
n
nIn addition, the marked scales help show the selected angles.
n
nSoft Grip Handle
n
nThe saw has a soft-grip trigger handle. Its design supports use from either side.
n
nTherefore, the user can choose a suitable hand position. Always keep a firm grip while using the saw.
n
nBlade Details
n
nBrand: Bosch
nModel: GCM12SD
nBlade Size: 12 Inches
nGlide System: Axial-Glide
nDual Bevel: Yes
n
nBevel Details
n
nBevel Range: 47° Left / 47° Right
nBevel Stops: 0°, 33.9°, 45° Left / Right
n
nMiter Details
n
nMiter Range: 52° Left / 60° Right
nMiter Stops: 0°, 15°, 22.5°, 31.6°, 45°, 60° Right
nMiter Stop Override: Yes
n
nSupport Details
n
nSquare-Lock Fences: Yes
nBase Extensions: Yes
nListed Material Support: Up to 40 Inches Left to Right
n
nDust Details
n
nDust Chute: Yes
nVacuum Adapter: Yes
n
nProduct Details
n
nProduct Type: Dual-Bevel Glide Miter Saw
nHandle: Soft Grip
nHandle Use: Left or Right Side
nFront Controls: Yes
nSuggested Category: Miter Saws / Power Tools
nSKU: 25218
