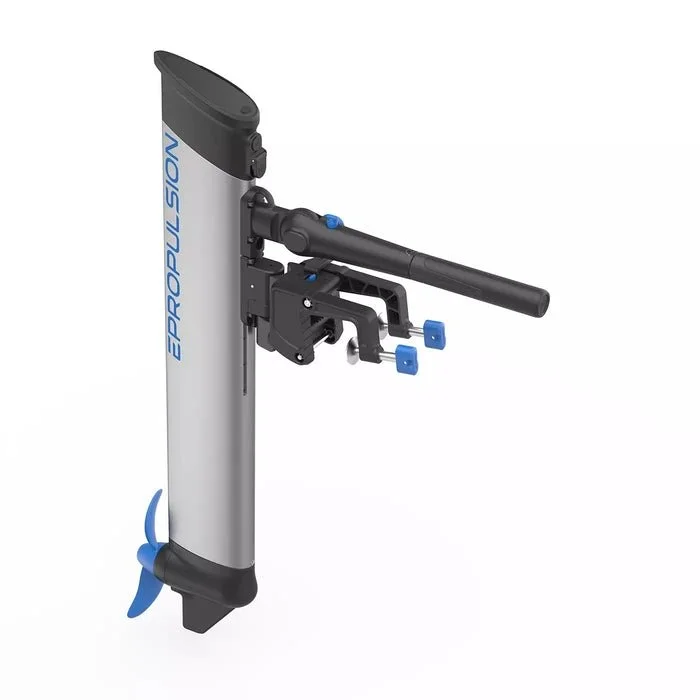

ePropulsion eLite Electric Outboard Motor

𝗲𝗣𝗿𝗼𝗽𝘂𝗹𝘀𝗶𝗼𝗻 𝗲𝗟𝗶𝘁𝗲 𝗘𝗹𝗲𝗰𝘁𝗿𝗶𝗰 𝗢𝘂𝘁𝗯𝗼𝗮𝗿𝗱
n

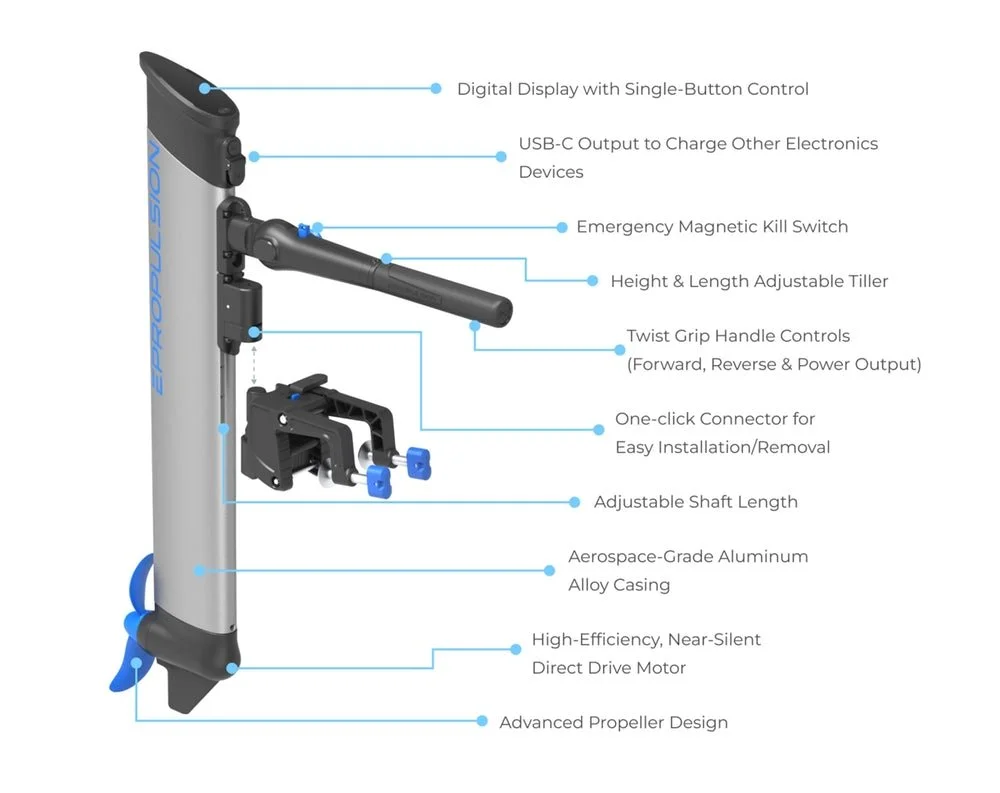

nThe ePropulsion eLite Electric Outboard is a 500W motor for small boats. It has an integrated 378Wh lithium-ion battery.
n
nThe motor is available with short or long shaft options. In addition, it provides up to 750W in Sport Mode.
n
n𝟱𝟬𝟬𝗪 𝗘𝗹𝗲𝗰𝘁𝗿𝗶𝗰 𝗠𝗼𝘁𝗼𝗿
n
nThe motor has a nominal power output of 500W.
n
nSport Mode provides up to 750W of output.
n
n𝗜𝗻𝘁𝗲𝗴𝗿𝗮𝘁𝗲𝗱 𝗕𝗮𝘁𝘁𝗲𝗿𝘆
n
nThe ePropulsion eLite Electric Outboard has an integrated 378Wh lithium-ion battery.
n
nA 100–240V AC charger is included.
n
n𝗦𝗵𝗼𝗿𝘁 𝗦𝗵𝗮𝗳𝘁
n
nThe short shaft has four adjustment positions.
n
nThe listed settings are 11.1, 12.7, 14.27, and 15.8 inches.
n
n𝗟𝗼𝗻𝗴 𝗦𝗵𝗮𝗳𝘁
n
nThe long shaft also provides four adjustment positions.
n
nThe listed settings are 17.0, 18.6, 20.2, and 21.7 inches.
n
n𝗧𝗿𝗶𝗺 𝗮𝗻𝗱 𝗧𝗶𝗹𝘁
n
nTrim positions are available at 8, 17, and 26 degrees.
n
nThe motor also provides a 75-degree tilt angle and a 36-degree shallow-water position.
n

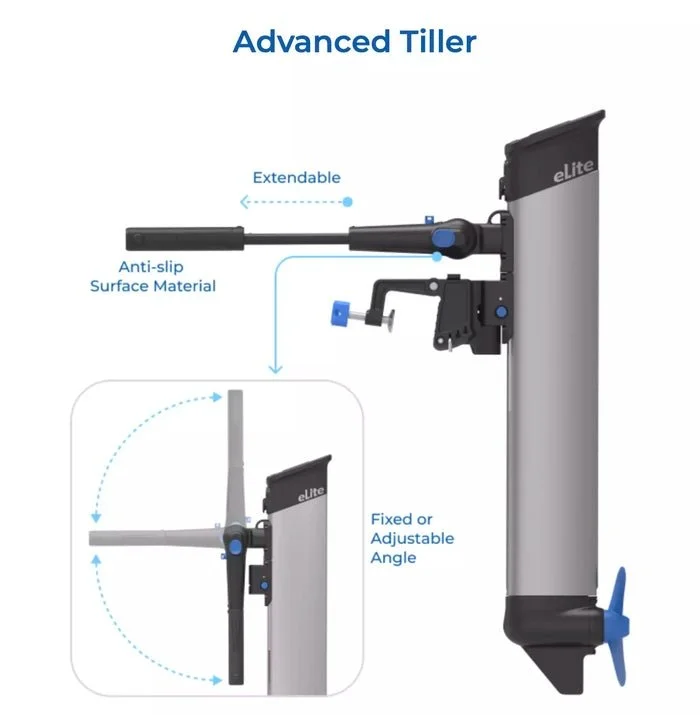

n𝗦𝘁𝗲𝗲𝗿𝗶𝗻𝗴
n
nThe steering angle is listed at ±70 degrees.
n
nThis provides directional adjustment during operation.
n
n𝗪𝗲𝗶𝗴𝗵𝘁 𝗮𝗻𝗱 𝗦𝗶𝘇𝗲
n
nThe motor weighs 14.7 lb.
n
nThe listed weight with the bracket is 17.4 lb. Its dimensions are 11.7 × 3 × 35 inches.
n
n𝗣𝗿𝗼𝗱𝘂𝗰𝘁 𝗦𝗽𝗲𝗰𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀
n
nBrand: ePropulsion
nModel: eLite
nProduct Type: Electric Outboard Motor
nNominal Power: 500W
nSport Mode Power: Up to 750W
nListed Horsepower: 1.5 HP
nBattery: Integrated Lithium-Ion
nBattery Capacity: 378Wh
nCharger: 100–240V AC
nShaft Options: Short / Long
nShort Shaft Settings: 11.1 / 12.7 / 14.27 / 15.8 Inches
nLong Shaft Settings: 17.0 / 18.6 / 20.2 / 21.7 Inches
nTrim Positions: 8° / 17° / 26°
nTilt Angle: 75°
nShallow-Water Tilt: 36°
nSteering Angle: ±70°
nOperating Temperature: 23°F to 131°F
nMotor Weight: 14.7 lb
nWeight with Bracket: 17.4 lb
nDimensions: 11.7 × 3 × 35 Inches
