GE 30 Inch Electric Cooktop JP3030DWBB with 4 Radiant Elements

GE 30 Inch Cooktop JP3030DWBB has four radiant cooking elements. It also has a black ceramic glass surface. In addition, knob controls sit on the right side.
n
nFour Radiant Elements
n
nThe cooktop has four radiant elements. Two elements measure 8 inches. Meanwhile, two elements measure 6 inches.
n
nTherefore, the cooktop provides different element sizes for compatible cookware.
n
nPower Boil Elements
n
nTwo 8-inch elements provide 2,500W each. Both elements also include the Power Boil function.
n
nAs a result, these elements provide the highest listed output on the cooktop.
n
n6 Inch Elements
n
nThe two 6-inch elements provide 1,200W each.
n
nIn addition, the cooktop includes Keep Warm and Melt settings.
n
nKeep Warm Setting
n
nThe Keep Warm setting uses a lower heat level.
n
nTherefore, it provides another setting for prepared food.
n
nMelt Setting
n
nThe cooktop also includes a Melt setting.
n
nThis setting provides another low-heat option for compatible cooking tasks.
n
nCeramic Glass Surface
n
nThe cooking surface uses black ceramic glass. It also has a frameless design.
n
nIn addition, the control knobs have a gloss black finish.
n
nIndicator Lights
n
nThe cooktop has four hot surface indicator lights.
n
nIt also has an On indicator. Therefore, users can check the element status from the cooktop.
n
nKnob Controls
n
nThe control knobs sit on the right side.
n
nIn addition, the knobs are listed as dishwasher safe.
n
nElectrical Requirements
n
nThe cooktop operates on a 208V or 240V electrical supply. The listed frequency is 60Hz.
n
nIn addition, the recommended circuit is 30A at 208V or 40A at 240V.
n

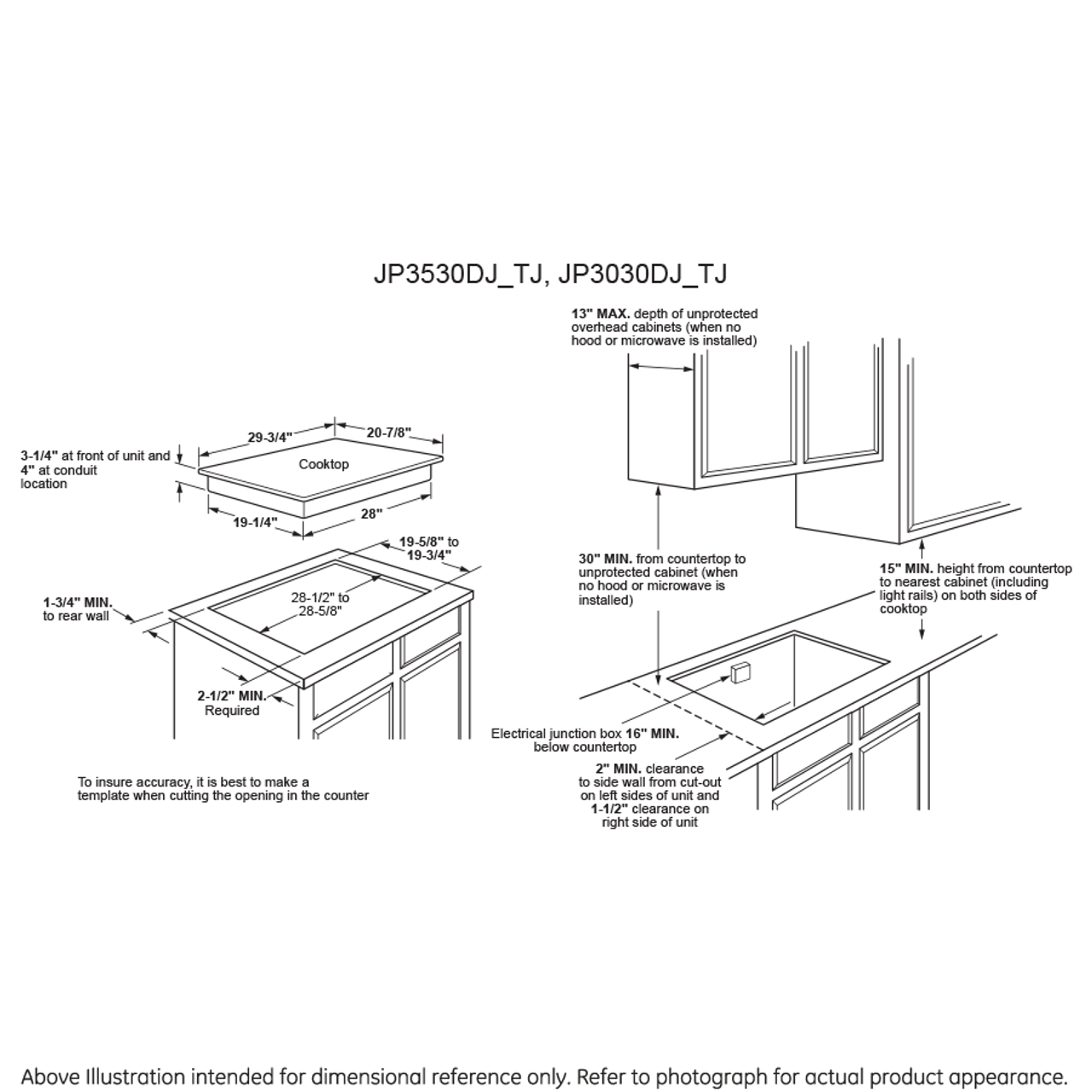

nSize and Weight
n
nThe cooktop is 29.75 inches wide. It is also 20.875 inches deep and 4 inches high.
n
nMeanwhile, the listed net weight is 37 pounds.
n
nKey Features
n
n• Four radiant elements
n• Two 2,500W Power Boil elements
n• Two 1,200W elements
n• Keep Warm setting
n• Melt setting
n• Black ceramic glass surface
n• Frameless design
n• Hot surface indicator lights
n• Cooktop On indicator
n• Right-side knob controls
n• Dishwasher-safe knobs
n• 208V / 240V electrical supply
n
nProduct Details
n
nBrand: GE
nModel: JP3030DWBB
nType: Built-In Electric Cooktop
nSize: 30 Inches
nCooking Elements: 4
nFuel Type: Electric
nSurface: Black Ceramic Glass
nControl Type: Knobs
nControl Location: Right Side
nLeft Front Element: 6 Inches / 1,200W
nLeft Rear Element: 8 Inches / 2,500W
nRight Front Element: 8 Inches / 2,500W
nRight Rear Element: 6 Inches / 1,200W
nElectrical Supply: 208V / 240V
nFrequency: 60Hz
nWidth: 29.75 Inches
nDepth: 20.875 Inches
nHeight: 4 Inches
nNet Weight: 37 lbs
