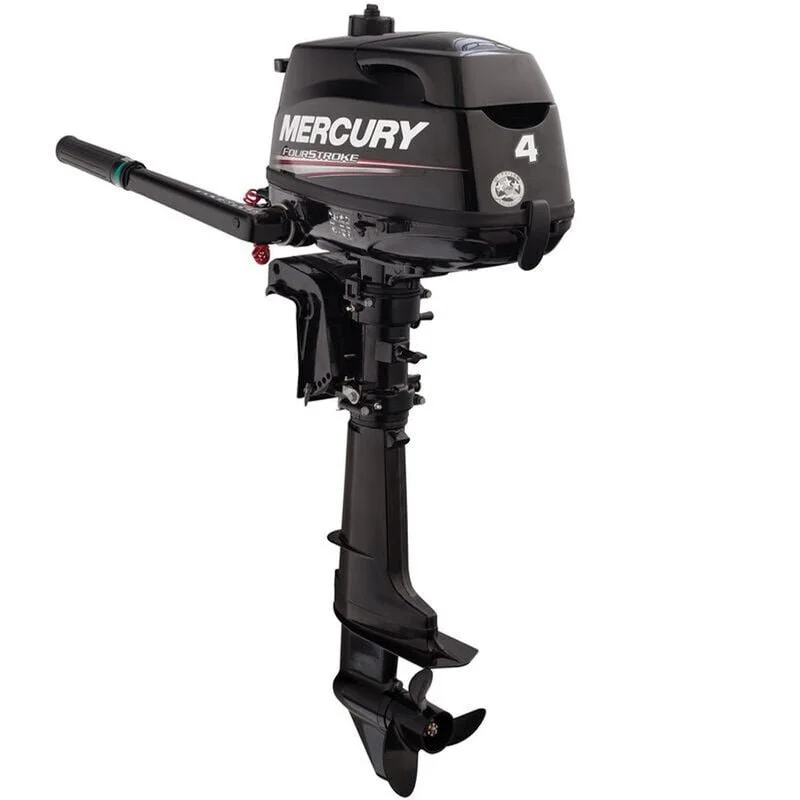

Mercury 4HP FourStroke Outboard Motor

𝗠𝗲𝗿𝗰𝘂𝗿𝘆 𝟰𝗛𝗣 𝗙𝗼𝘂𝗿𝗦𝘁𝗿𝗼𝗸𝗲 𝗢𝘂𝘁𝗯𝗼𝗮𝗿𝗱
n
nThe Mercury 4HP FourStroke Outboard is a compact marine motor with tiller steering. It has a 4 HP engine and a 15-inch shaft.
n
nThe motor uses manual starting. In addition, it has forward, neutral, and reverse gears.
n
n𝟰 𝗛𝗣 𝗙𝗼𝘂𝗿𝗦𝘁𝗿𝗼𝗸𝗲 𝗘𝗻𝗴𝗶𝗻𝗲
n
nThe motor uses a 4-stroke engine with a 2-valve push-rod design.
n
nIts listed full-throttle range is 4,500 to 5,500 RPM.
n
n𝗠𝗮𝗻𝘂𝗮𝗹 𝗦𝘁𝗮𝗿𝘁
n
nThe Mercury 4HP FourStroke Outboard has a manual starting system.
n
nA decompression system and electronic CD ignition are also included.
n
n𝗧𝗶𝗹𝗹𝗲𝗿 𝗦𝘁𝗲𝗲𝗿𝗶𝗻𝗴
n
nThe motor uses tiller steering.
n
nIt also has forward, neutral, and reverse gear positions.
n
n𝗜𝗻𝘁𝗲𝗴𝗿𝗮𝗹 𝗙𝘂𝗲𝗹 𝗧𝗮𝗻𝗸
n
nThe built-in fuel tank has a listed capacity of 0.3 gallon.
n
nA fuel shut-off valve is also included.
n
n𝗧𝗿𝗶𝗺 𝗮𝗻𝗱 𝗦𝗵𝗮𝗹𝗹𝗼𝘄 𝗪𝗮𝘁𝗲𝗿 𝗗𝗿𝗶𝘃𝗲
n
nThe motor provides six trim positions.
n
nA shallow-water drive position is also included.
n
n𝗘𝗻𝗴𝗶𝗻𝗲 𝗣𝗿𝗼𝘁𝗲𝗰𝘁𝗶𝗼𝗻
n
nOne-stage over-rev protection is included.
n
nThe motor also has a low oil pressure warning system.
n
n𝗣𝗿𝗼𝗽𝗲𝗹𝗹𝗲𝗿
n
nA 3-blade propeller is included.
n
nThe listed size is 8-3/8 inches in diameter with a 7-inch pitch.
n
n𝗣𝗿𝗼𝗱𝘂𝗰𝘁 𝗦𝗽𝗲𝗰𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀
n
nBrand: Mercury
nProduct Type: Outboard Motor
nHorsepower: 4 HP
nEngine Type: 4-Stroke
nEngine Design: 2-Valve Push Rod
nShaft Length: 15 Inches
nFull-Throttle Range: 4,500–5,500 RPM
nStarting System: Manual
nSteering: Tiller
nGear Positions: Forward / Neutral / Reverse
nGear Ratio: 2.15:1
nExhaust System: Through Prop
nFuel Tank: Integral
nFuel Tank Capacity: 0.3 Gallon
nRecommended Fuel: 87 Octane / Up to 10% Ethanol
nTrim Positions: 6 Plus Shallow-Water Drive
nDry Weight: 57 lb
nOver-Rev Protection: Yes
nLow Oil Pressure Warning: Yes
nPropeller: 3-Blade
nPropeller Diameter: 8-3/8 Inches
nPropeller Pitch: 7 Inches
