Ui16 Remote Digital Mixer 16-Input WiFi Browser-Controlled Audio Mixer

Ui16 Remote Digital Mixer provides 16 inputs with built-in WiFi and browser-based control. It supports compatible iOS, Android, Windows, macOS, and Linux devices. In addition, up to 10 compatible control devices can access the mixer simultaneously.
n
n𝟭𝟲-𝗜𝗻𝗽𝘂𝘁 𝗗𝗶𝗴𝗶𝘁𝗮𝗹 𝗠𝗶𝘅𝗲𝗿
n
nThe mixer provides 16 listed inputs for compatible audio sources. Its connections support microphone, line-level, instrument, and stereo sources.
n
nIn addition, the stagebox-style design uses connected devices for mixer control.
n
n𝗕𝘂𝗶𝗹𝘁-𝗜𝗻 𝗪𝗶𝗙𝗶
n
nBuilt-in WiFi supports wireless mixer control. Therefore, compatible devices can access supported functions through the network.
n
nEthernet control is also supported for compatible wired network setups.
n

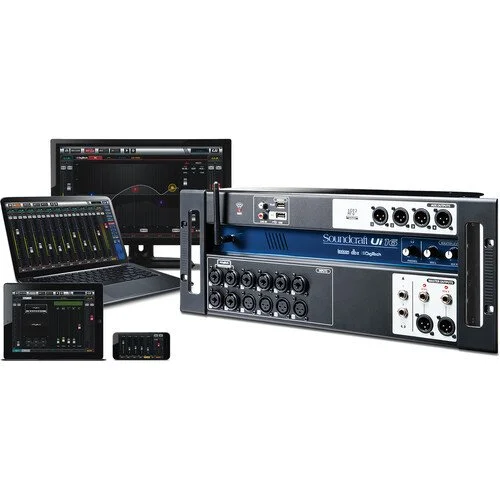

n𝗕𝗿𝗼𝘄𝘀𝗲𝗿-𝗕𝗮𝘀𝗲𝗱 𝗖𝗼𝗻𝘁𝗿𝗼𝗹
n
nThe mixer uses a web-browser-based control interface. As a result, compatible smartphones, tablets, and computers can control supported mixer functions.
n
nCompatibility depends on the connected device, browser, and network configuration.
n
n𝗨𝗽 𝘁𝗼 𝟭𝟬 𝗖𝗼𝗻𝘁𝗿𝗼𝗹 𝗗𝗲𝘃𝗶𝗰𝗲𝘀
n
nUp to 10 compatible devices can connect for simultaneous control. Therefore, multiple connected devices can access supported mixing functions.
n
nEach device requires a compatible network connection and browser environment.
n
n𝗖𝗿𝗼𝘀𝘀-𝗣𝗹𝗮𝘁𝗳𝗼𝗿𝗺 𝗦𝘂𝗽𝗽𝗼𝗿𝘁
n
nThe supplied specifications list support for iOS and Android devices. Windows, macOS, and Linux platforms are also listed.
n
nHowever, available functions can depend on the device and browser configuration.
n
n𝗜𝗻𝗽𝘂𝘁 𝗖𝗵𝗮𝗻𝗻𝗲𝗹 𝗣𝗿𝗼𝗰𝗲𝘀𝘀𝗶𝗻𝗴
n
nInput channels provide 4-band parametric EQ and high-pass filtering. In addition, compressor, de-esser, and noise gate functions are available.
n
nThese controls provide onboard processing for supported input channels.
n
n𝗱𝗯𝘅 𝗮𝗻𝗱 𝗗𝗶𝗴𝗶𝗧𝗲𝗰𝗵 𝗣𝗿𝗼𝗰𝗲𝘀𝘀𝗶𝗻𝗴
n
nThe supplied specifications include dbx and DigiTech processing technologies. Listed functions include dbx AFS2 feedback suppression and DigiTech amp modeling.
n
nTherefore, users can access these supported processing functions within the mixer.
n
n𝗧𝗵𝗿𝗲𝗲 𝗟𝗲𝘅𝗶𝗰𝗼𝗻 𝗙𝗫 𝗣𝗿𝗼𝗰𝗲𝘀𝘀𝗼𝗿𝘀
n
nThree Lexicon effects processors provide onboard effects. The listed functions include reverb, delay, and chorus.
n
nAs a result, users can manage supported effects within the digital mixing environment.
n
n𝗢𝘂𝘁𝗽𝘂𝘁 𝗣𝗿𝗼𝗰𝗲𝘀𝘀𝗶𝗻𝗴
n
nOutput processing includes a 31-band graphic EQ. Compressor and noise gate functions are also available.
n

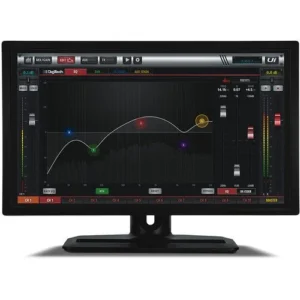

nIn addition, the mixer provides a real-time frequency analyzer across supported inputs and outputs.
n
n𝗥𝗲𝗰𝗮𝗹𝗹𝗮𝗯𝗹𝗲 𝗠𝗶𝘅𝗲𝗿 𝗦𝗲𝘁𝘁𝗶𝗻𝗴𝘀
n
nThe mixer supports Show and Snapshot recall functions. It also provides channel safes and security lockout.
n
nIn addition, users can access subgroups, mute groups, and view groups within supported configurations.
n
n𝗠𝗶𝗰𝗿𝗼𝗽𝗵𝗼𝗻𝗲 𝗮𝗻𝗱 𝗟𝗶𝗻𝗲 𝗖𝗼𝗻𝗻𝗲𝗰𝘁𝗶𝗼𝗻𝘀
n
nThe mixer includes four XLR combo mic/line inputs and four XLR microphone inputs. It also provides two Hi-Z instrument channels.
n
nIn addition, a stereo RCA line input supports compatible stereo audio sources.
n
n𝗠𝗮𝗶𝗻 𝗮𝗻𝗱 𝗔𝘂𝘅𝗶𝗹𝗶𝗮𝗿𝘆 𝗢𝘂𝘁𝗽𝘂𝘁𝘀
n
nFour balanced XLR auxiliary outputs provide additional routing connections. Meanwhile, the main section includes balanced stereo XLR and 1/4-inch outputs.
n
nThese connections support compatible output and monitoring setups.
n
n𝗗𝘂𝗮𝗹 𝗛𝗲𝗮𝗱𝗽𝗵𝗼𝗻𝗲 𝗢𝘂𝘁𝗽𝘂𝘁𝘀
n
nTwo 1/4-inch headphone outputs provide monitoring connections. In addition, the supplied information lists dedicated level control for these outputs.
n
nThis provides additional monitoring options within the mixer setup.
n
n𝗨𝗦𝗕 𝗣𝗹𝗮𝘆𝗯𝗮𝗰𝗸 𝗮𝗻𝗱 𝗥𝗲𝗰𝗼𝗿𝗱𝗶𝗻𝗴
n
nThe mixer supports 2-channel USB playback and recording. Listed playback formats include MP3, WAV, and AIFF.
n
nA compatible USB storage device is required for USB recording.
n

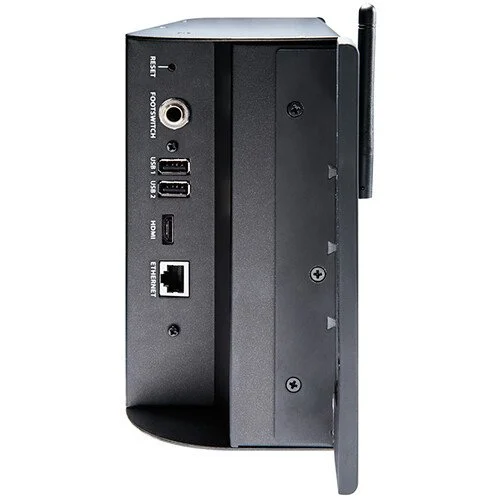

n𝗛𝗗𝗠𝗜 𝗗𝗶𝘀𝗽𝗹𝗮𝘆 𝗢𝘂𝘁𝗽𝘂𝘁
n
nAn HDMI output provides a connection for a compatible external display. Therefore, users can integrate a supported display into the mixer setup.
n
nDisplay compatibility depends on the connected equipment and configuration.
n
n𝗣𝗿𝗼𝗱𝘂𝗰𝘁 𝗦𝗽𝗲𝗰𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀
n
nProduct Type: Remote-Controlled Digital Mixer
nModel: Ui16
nListed Inputs: 16
nXLR Combo Mic/Line Inputs: 4
nXLR Microphone Inputs: 4
nHi-Z Instrument Channels: 2
nStereo RCA Line Input: Yes
nBuilt-In WiFi: Yes
nEthernet Control: Supported
nSimultaneous Control Devices: Up to 10
nBrowser-Based Control: Yes
nSupported Platforms: iOS, Android, Windows, macOS, Linux
nInput EQ: 4-Band Parametric
nHigh-Pass Filter: Yes
nCompressor: Yes
nDe-Esser: Yes
nNoise Gate: Yes
nOutput Graphic EQ: 31-Band
nReal-Time Frequency Analyzer: Yes
nLexicon FX Processors: 3
nXLR Auxiliary Outputs: 4
nMain Outputs: Balanced XLR and 1/4-Inch
nHeadphone Outputs: 2 x 1/4-Inch
nUSB Playback: 2-Channel
nUSB Recording: 2-Channel
nListed Playback Formats: MP3, WAV, AIFF
nHDMI Display Output: Yes
